Getting Started - 4.9 - Pro Series C600 Pro V2

Connecting the C600 Pro Facial Recognition Terminal to your Local Network

Connecting the clock to your network via a cable

You will need:

Your Admin Card
You may also need a valid IP Address for the Clocking Terminal, though our default IP (192.168.1.201) will work in most cases.

Press the M/OK on the Keypad so that a ‘‘Padlock / Please Verify’’ shows on screen and hold the Admin Card in front of the bottom half of the Clock to get into the Admin Menu.

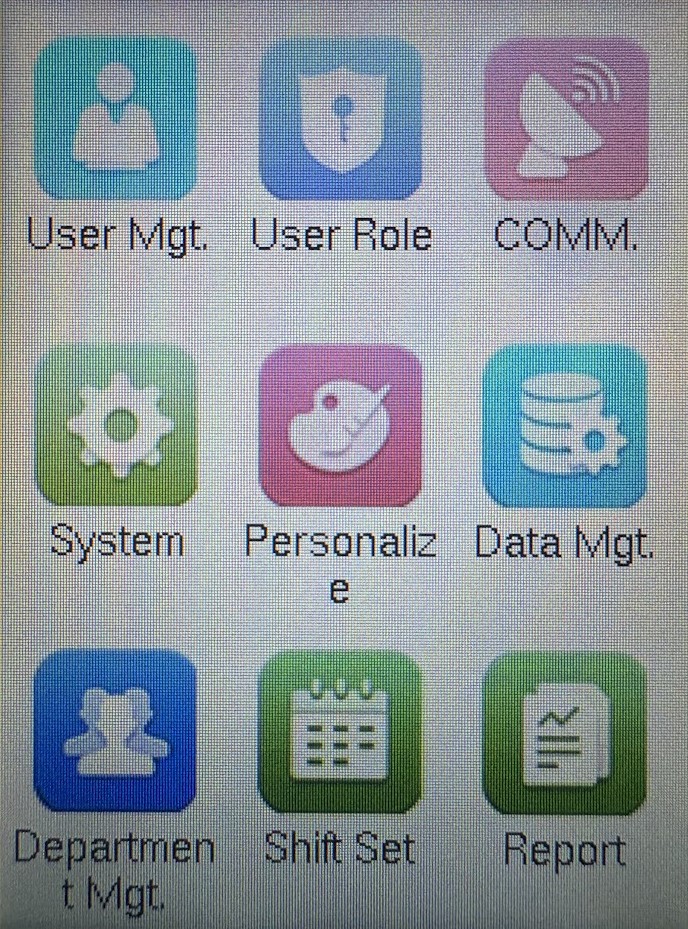

Navigate to the COMM menu via the keypad.

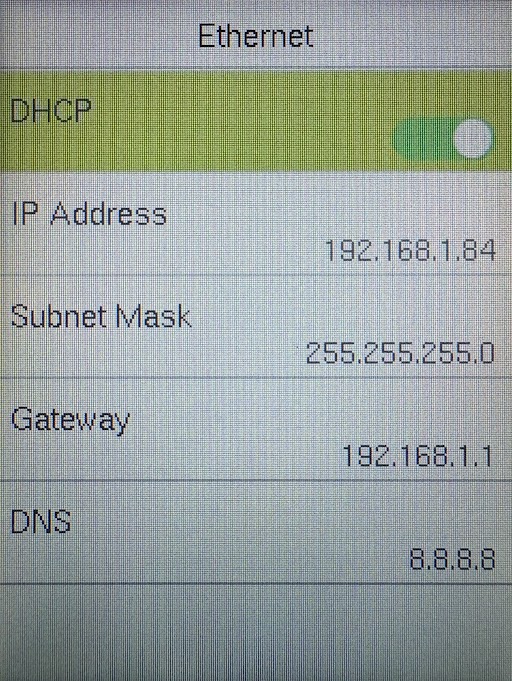

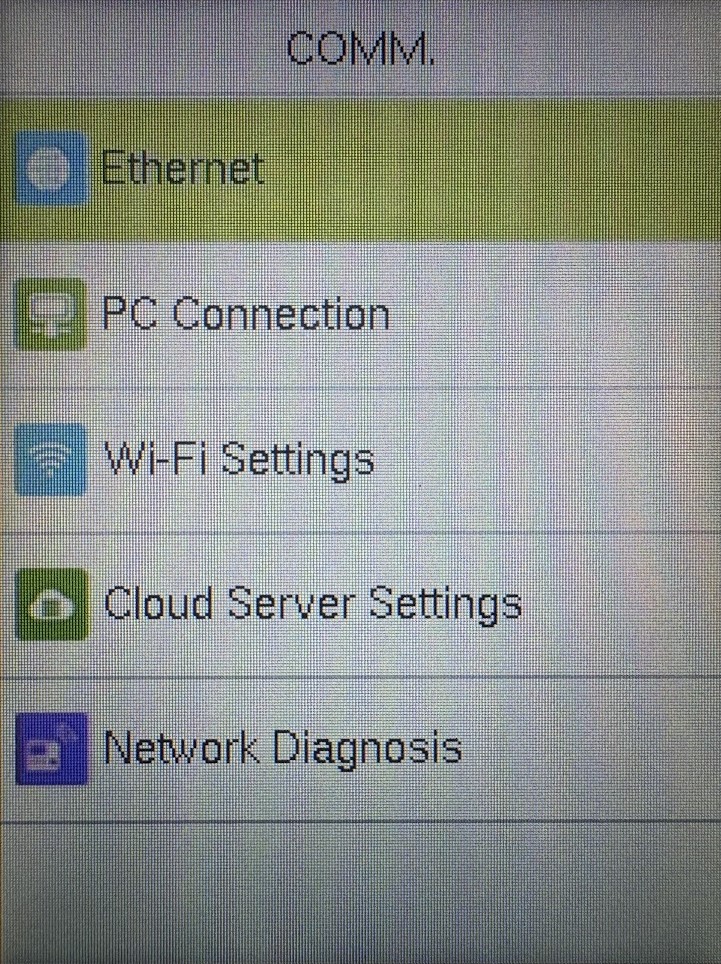

Navigate to the ethernet Ethernet Menu

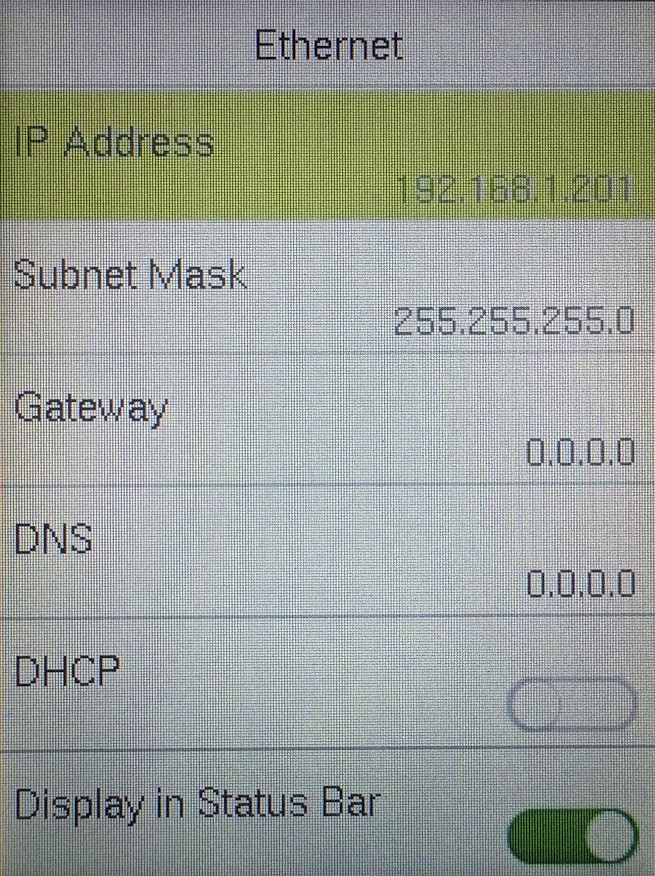

Press M/OK on the IP Address and enter the valid IP Address using the keypad and press M/OK.

Once done, Esc out of the menu to save the change.

The symbol will show when the Clock is connected to a Network via Ethernet cable.

Connecting the clock to your network via WIFI

You will need:

Your Admin Card
The SSID (network name) and password of the WIFI network you'd like to connect to.
You may also need a valid IP Address for the Clocking Terminal, though our default IP (192.168.1.201) will work in most cases.

Press the M/OK on the Keypad so that a ‘‘Padlock / Please Verify’’ shows on screen and hold the Admin Card in front of the bottom half of the Clock to get into the Admin Menu.

Navigate to the COMM menu via the keypad.

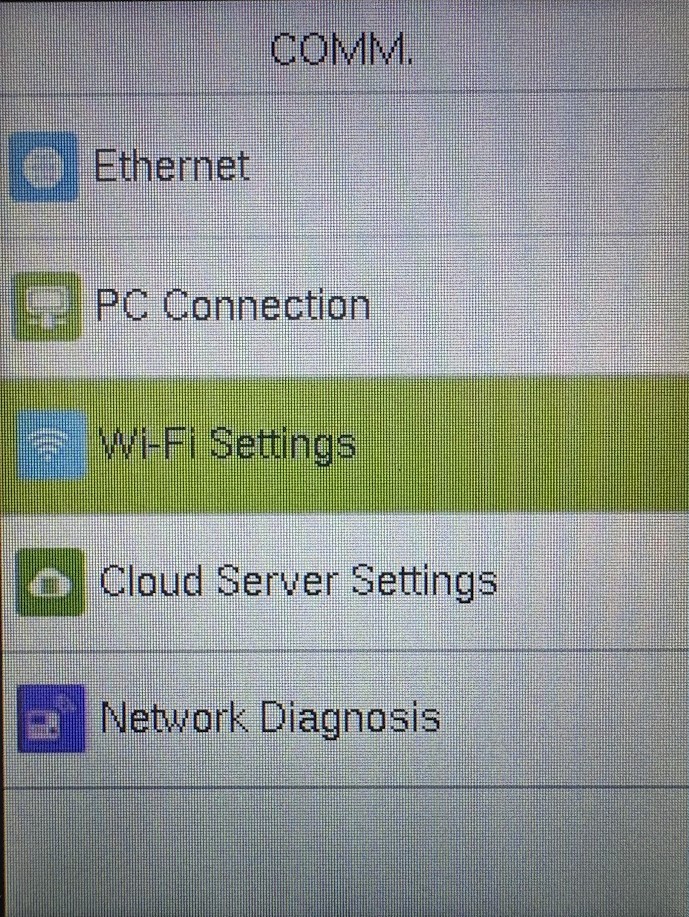

Navigate to the WI-FI Setting menu

Use the Up and down arrow keys to navigate the list of available WiFi Networks until you find the WiFi Network you wish to connect the Clock to.

Once you have found the WiFi Network you intend to connect to, Press the M/OK button and enter the WIFI Password. Once done press M/OK.

Press the down and up arrow to navigate the list of available WiFi Networks until you find the Advanced option.

Within the Advanced option, click on the IP address and enter it using the keypad. Once complete press M/OK.

Press the Esc key to save the change.

The symbol will show when the Clock is connected to a Network via WIFI.

Changing the IP Address in the ClockRite Software

Once the Clocking Terminal has been connected it is important to make sure that the IP entered into the software matches the IP address assigned to the Clocking terminal.

1. Click on 'Clock ops' on the top Toolbar. This will open the 'Clock Setup' Screen.

2. Click on 'Setup' on the lower toolbar of the 'Clock Setup' screen. This will open the 'Clock Setup' screen.

3. Here you will see the default IP address for the Clocking Terminal. Change this to the desired IP address. You can also add a relevant Description by which to identify the terminal.

4. If you need to add another Clocking Terminal to the 'Clock Setup' screen, click 'New' on the lower toolbar.

If you have more than one Clocking Terminal to configure, ensure each has a unique IP Address.
